MONOMOLE TRAILED SINGLE LEG

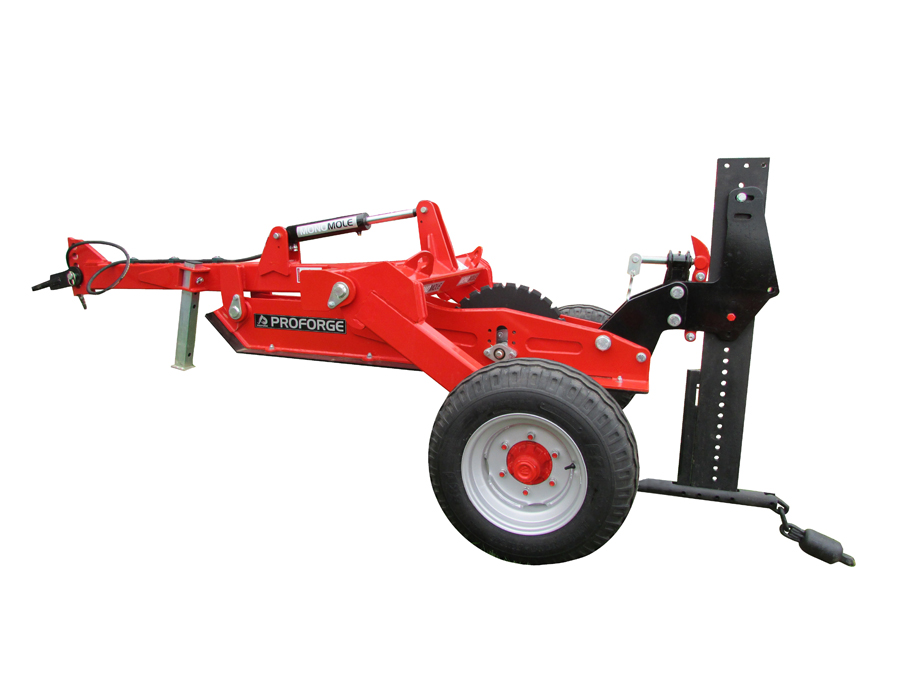

PROFORGE MONOMOLE Trailed Single Leg Moledrainer

OVERVIEW

The Monomole single leg trailed version is an excellent universal machine, making it a perfect choice for farmers and contractors. Manufactured in the UK to a high standard and designed to withstand the rigours of heavy arable land and grassland.
FIND A STOCKIST

KEY STRENGTH

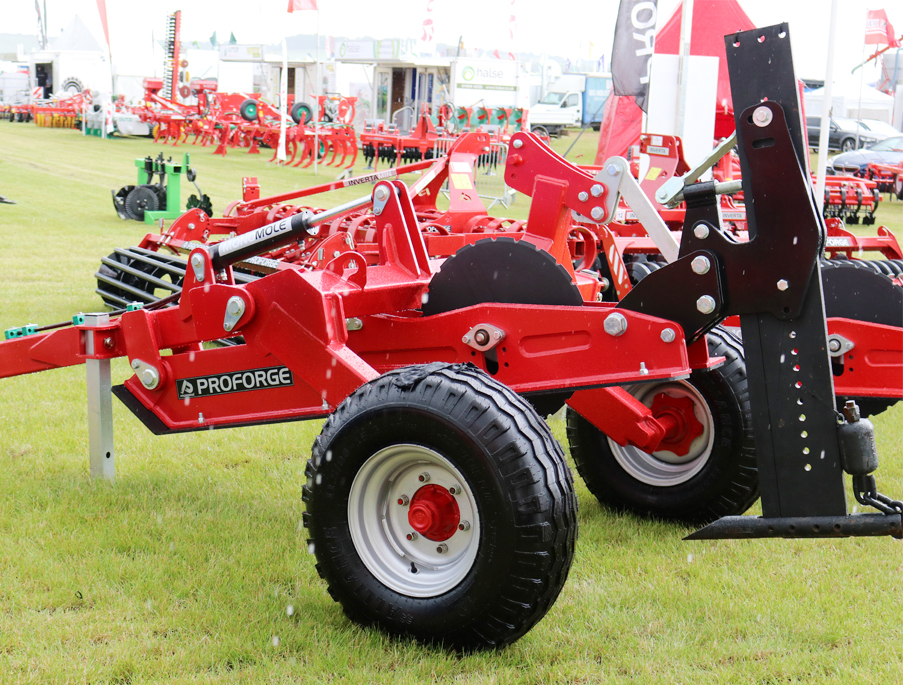

As a trailed version this allows the machine to follow the contours of uneven land and give added stability with the benefit of transport support wheels. Features include the PROFORGE® notched disc, multi-feature leg bracket assembly and the universal body with replaceable wear skid

ECONOMY

A Pitch adjustable 60″ leg assists in penetration in some conditions and allows for compensation to be made to ensure even wear on the mole bullet and expander, which reduces downtime and costs spent on replacement parts.

TESTIMONIAL

“If you want a machine to pass on to the next generation, then choose this.”
Neil Campbell, Farmer from Wanganui, NZ

ALL FEATURES

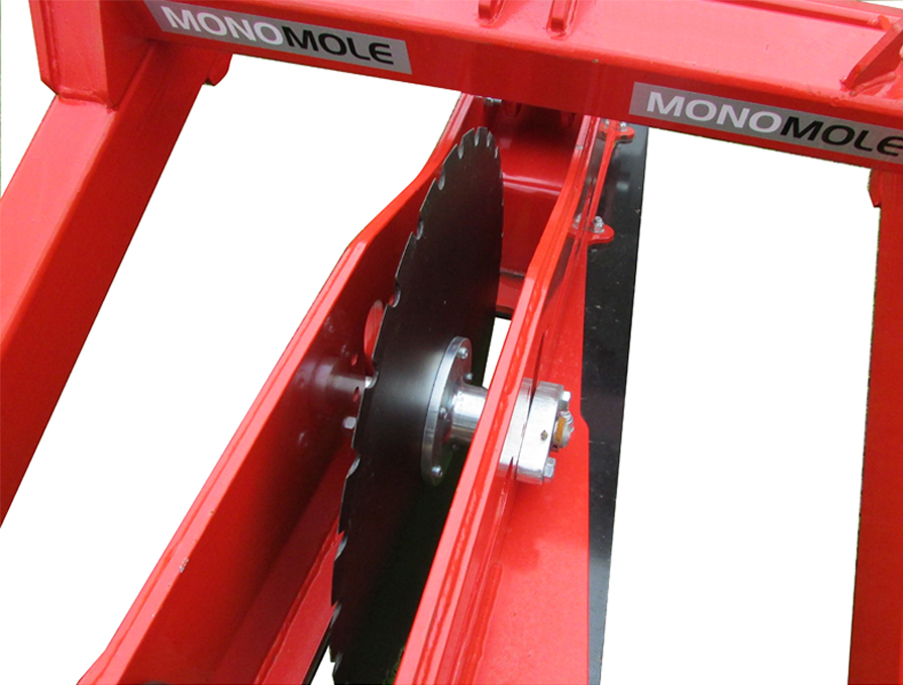

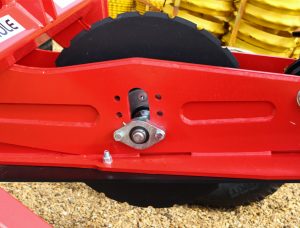

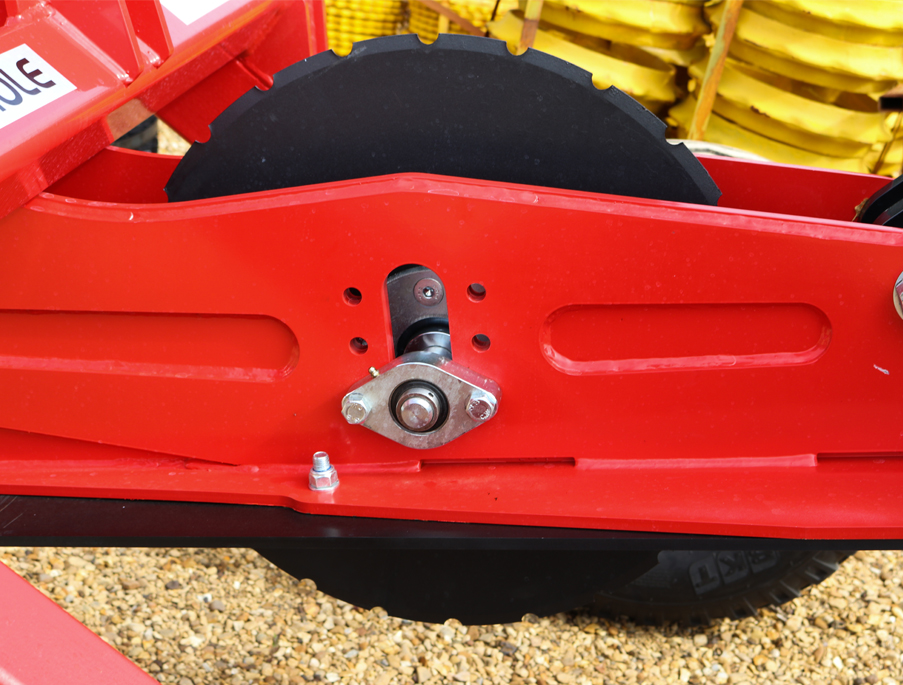

  • Large 26” diameter notched disc, seriously reduces heave and minimizes top surface damage. Also benefits from adjustable depth control.
  • Exposed leg for the best trash clearance. Allows the trash to flow round the leg/under the beam reducing undue lift and tilt to the main beam.

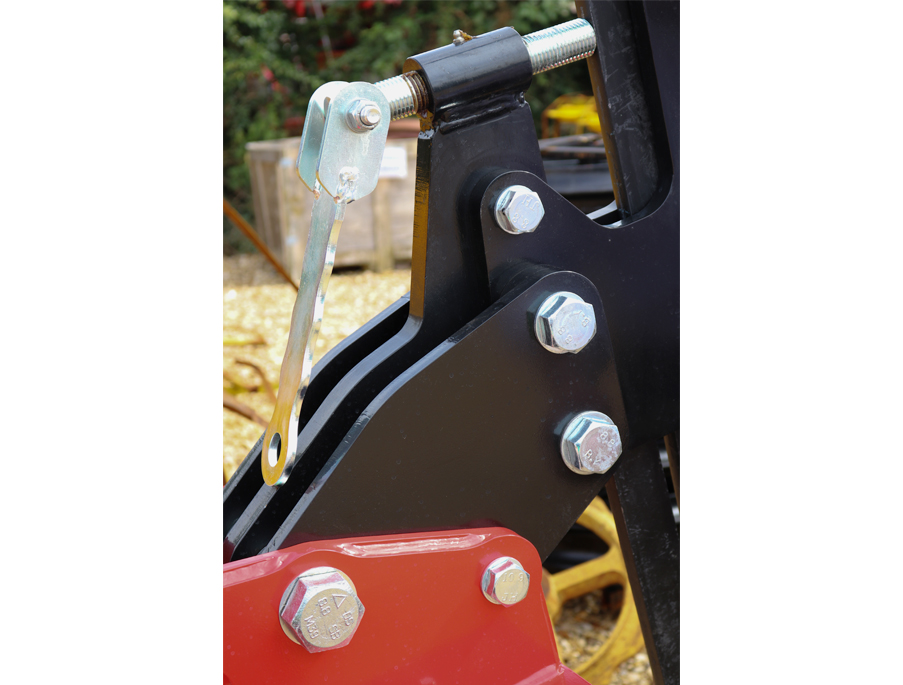

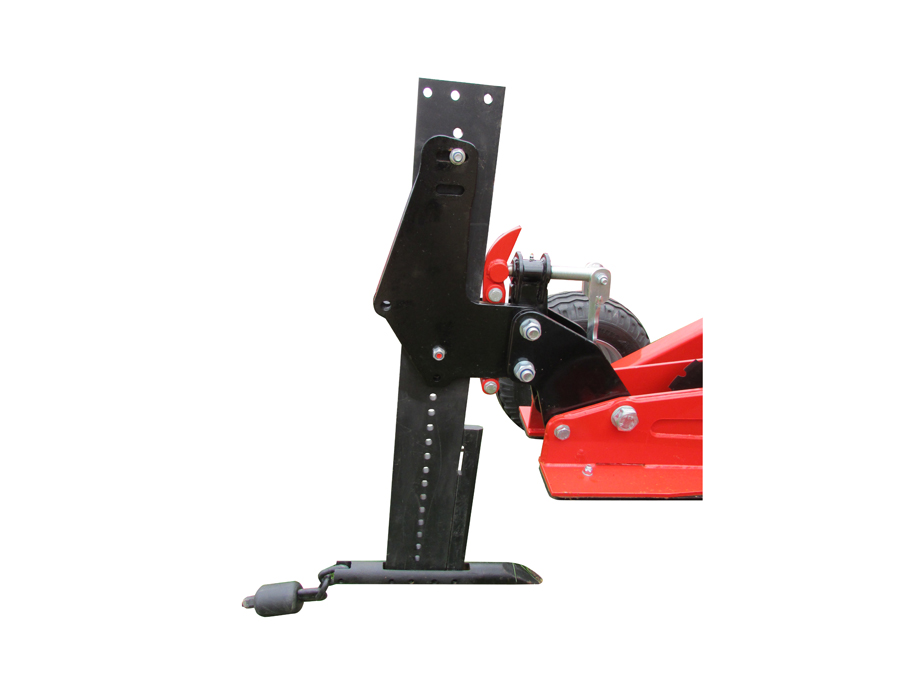

  • Pitch adjustable 60” leg assists in penetration in some conditions and allows for compensation to be made to ensure even wear on the bullet and expander.

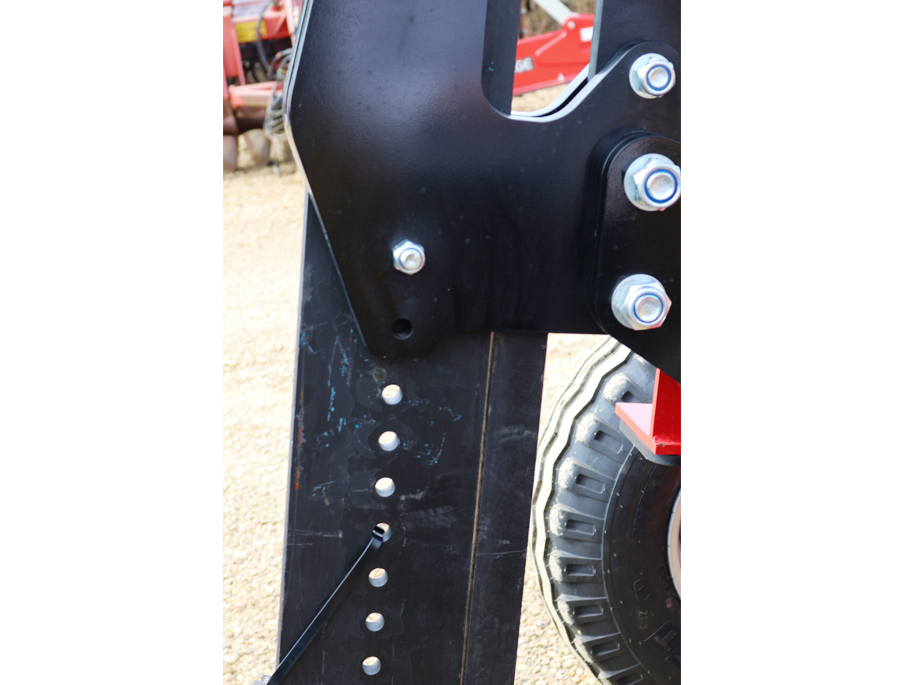

  • Depth adjustable 60” leg, adjustment in 1” increments allows for precise depth control, this is reversible for longevity.
  • Under – beam replaceable wear skid

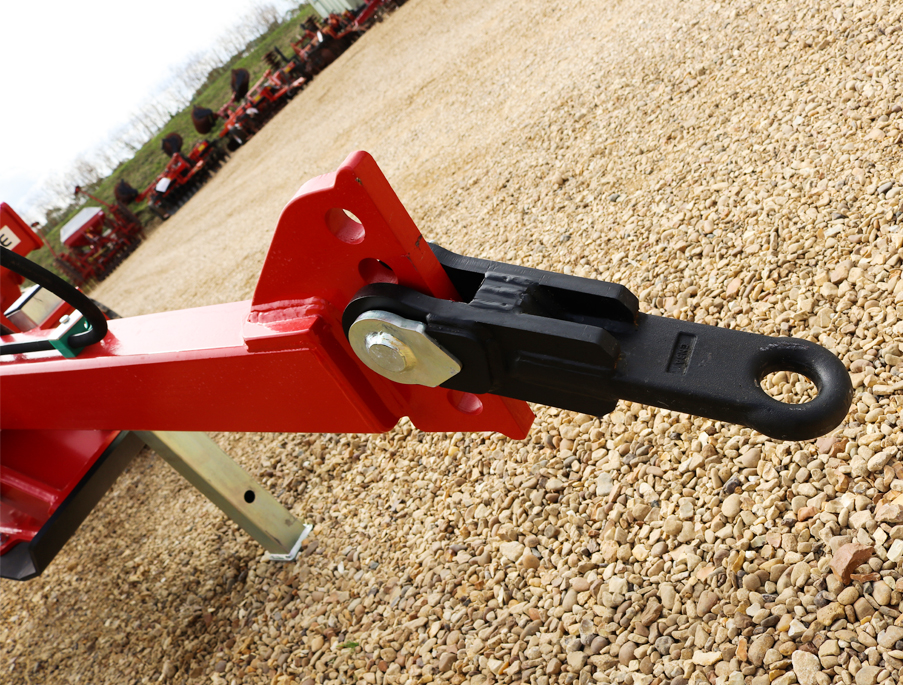

  • Adjustable height draw bar eye allows for greater flotation in work, and consistent mole draining over undulating land.

TECHNICAL INFORMATION

Model Size (LxW) Working Leg Depth Working Disc Depth HP Required (Wheels) HP Required (Tracks)
Monomole Trailed 4380 x 1950 mm 0 - 560 mm 120 – 230 mm 130 100
