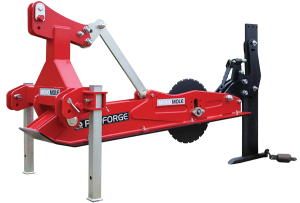

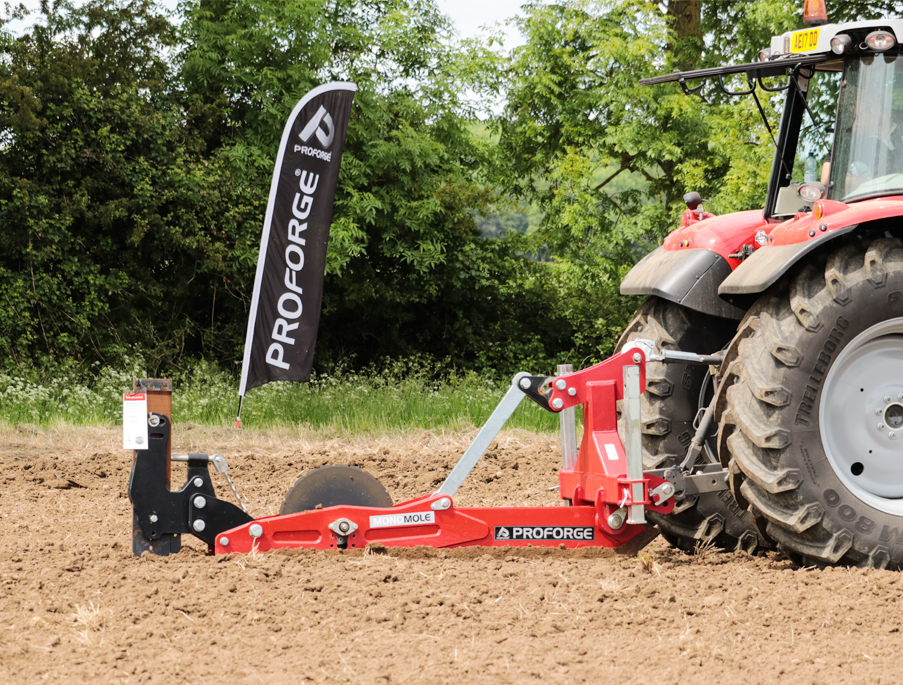

MONOMOLE™ Single Leg Mole Drainer – Mounted

PROFORGE MONOMOLE Mole Drainer – Mounted Beam Single Leg

OVERVIEW

The Mounted Single Leg Monomole is a compact and versatile machine, making it an ideal choice for farmers. Manufactured in the UK to a high standard and designed to withstand the rigours of heavy arable land and grasslands.
FIND A STOCKIST

KEY STRENGTH

Features include the well-proven PROFORGE® notched disc design, multi-feature leg bracket assembly and the universal body, with replaceable wear skid.

ECONOMY

Without the expense of wheels, rams and axles required on trailed versions, this Moledrainer sits at a very competitive price. Considering the high calibre of materials used, this model is one of it’s kind.

TESTIMONIAL

““A great investment” Lincolnshire Farmer, England, UK”’

ALL FEATURES

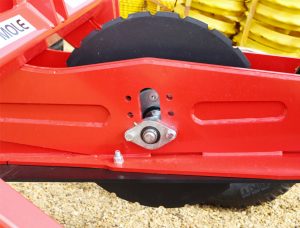

  • Large 26” diameter notched disc, seriously reduces surface heave, and minimises top surface damage. Also benefits from adjustable depth control
  • Exposed leg for the best trash clearance, allows the trash to flow round the leg and under the beam reducing undue lift and tilt to the main beam

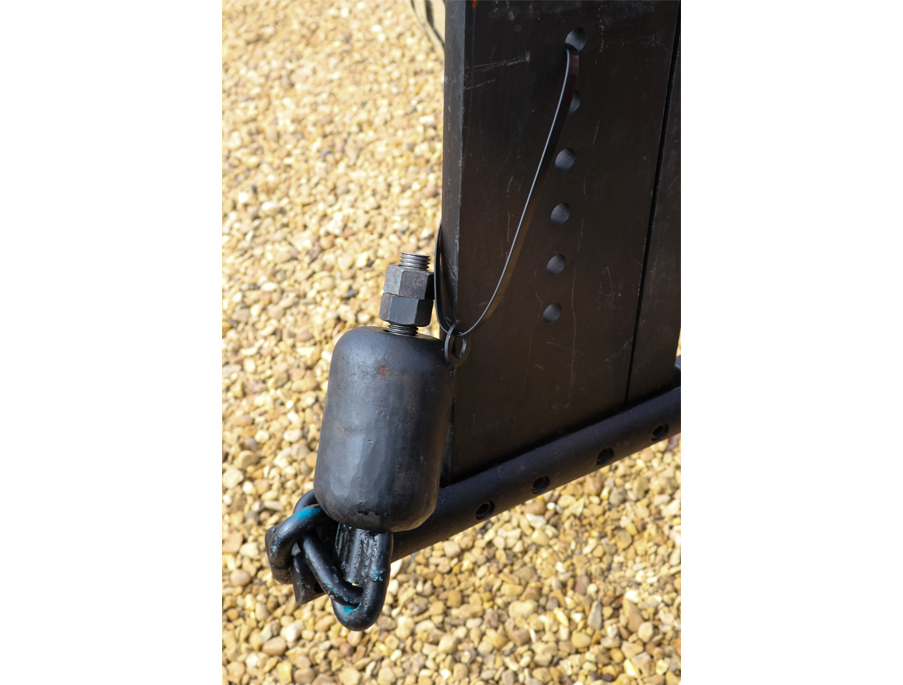

  • Pitch adjustable 60” leg which assists penetration in some conditions and allows for compensation to be made to ensure even wear on the bullet and expander

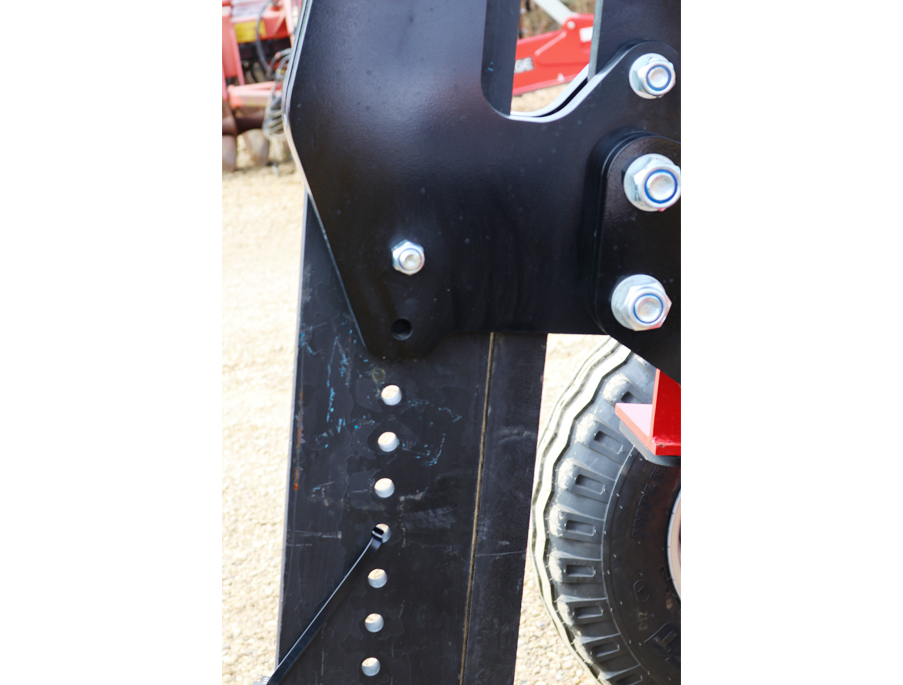

  • Depth adjustable 60” leg, adjustment in 1” increments allows for precise depth control. Reversible for longevity.
  • Under – beam replaceable wear skid

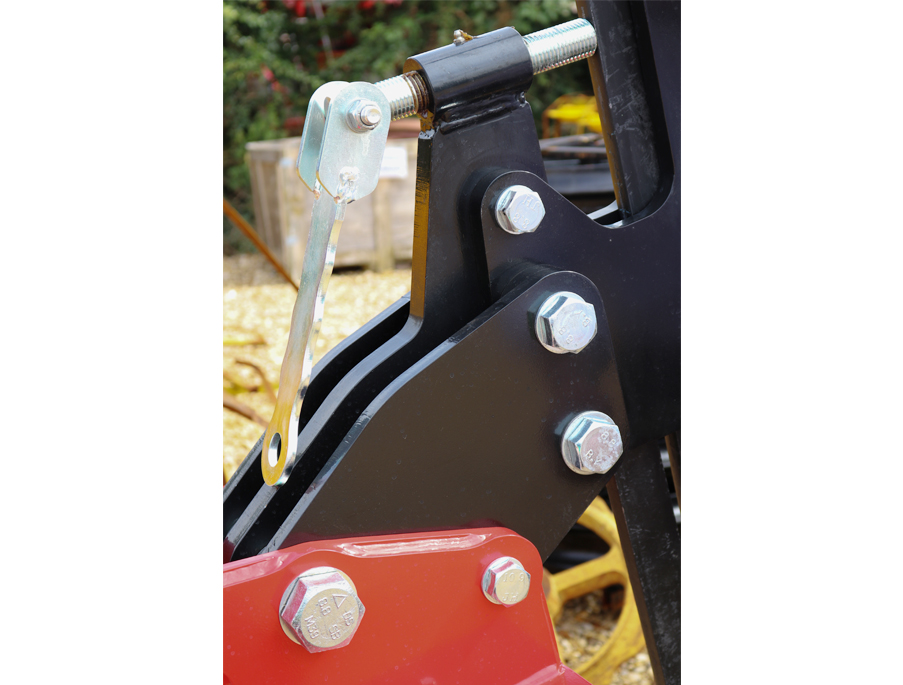

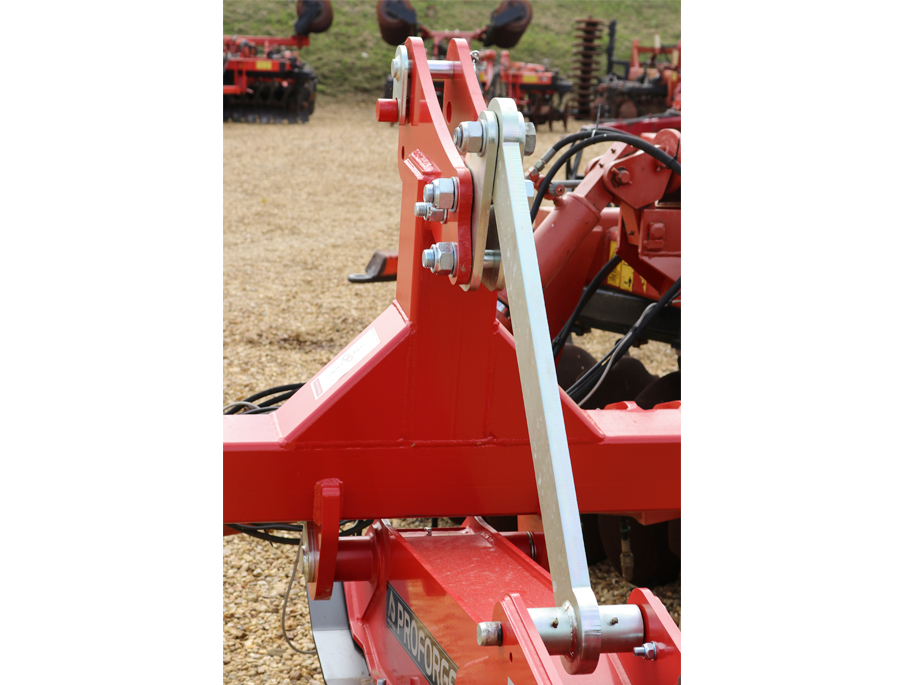

  • Floating top – link design/Floating arc with pins allows for consistent mole draining over undulating land
  • Hi – Rise Leg Flange



  • Exciting 2022 Developments…
    • New high-chromium replaceable front bevel plate – lasting 5-7 times longer than original spec!
    • New high-chromium ProMole point – unique lead to land and tapered shape, increasing strength and durability – lasting 5-7 times longer than original spec.

TECHNICAL INFORMATION

Model HP required (Wheel) HP required (Tracks) Leg Depth Disc Depth Length Width Weight
MonomoleMountedSing-Leg 130+ HP 100+ HP 0-26" 5-9" 2.84 m 1.23 m
