DISRUPTA

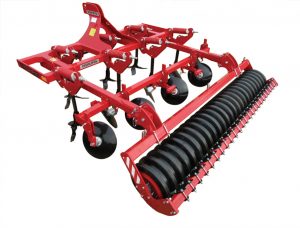

PROFORGE DISRUPTA stubble cultivator

OVERVIEW

The Disrupta is a modern stubble cultivator used for shallow and deep loosening of compacted soils and for the cutting through of mixed crop residues. Also effective over previously ploughed land for breaking, skimming and levelling many types of soil.

FIND A STOCKIST

KEY STRENGTH

This machine is particularly good on compacted soils. The main frame is made from thick walled profiles, making the construction strong enough to meet challenging requirements.

ECONOMY

Excellent value for money, with low horsepower requirement reducing input costs. Compact design and large space between rows ensure easy operation without congestion, as well as high efficiency.

TESTIMONIAL

“The job it did was staggering! At 150 – 200 mm depth, the wide sweep shares moved, boiled and mixed everything, leaving an excellent tilth for drilling, in one pass… it was a real eye – opener to see how much can be achieved on heavy land with one pass, by such an affordable tractor and cultivator.

Ben Whyles, Agri-Linc, Demo of a 3 Metre Disrupta & McCormick 120 HP Tractor”

ALL FEATURES

  • High operating speeds (10 – 15 km/h with low horsepower requirement)
  • 3 point linkage system for rigid close coupling to the machine
  • Heavy duty frame design
  • Auto – reset or shear bolt leg options
  • Deep cultivation p to 150mm
  • Compact design with large leg and disc spacing for maximum trash flow
  • 7 tine, 8 disc combination
  • Choice of rear packers
  • Low horse power requirement – Minimum of 120 HP
  • More depth adjustable packer options including tyre, crumbler roller and crosskill are available to meet your specific requirements
  • Optional extra of lighting beam
  • 3 point linkage system for rigid close coupling to the machine
  • Adjustable disc beam to in crease the distance from the packer roller especially on high stubble
  • Adjustable depth and angle control on leg and packer roller
  • 460 mm diameter levelling discs
  • Large tine and disc spacing for maximum trash flow (425 mm spacing between tines)
  • 835 mm high ground clearance
  • Proven foot design

TECHNICAL INFORMATION

MODEL Weight Tines Discs HP Required
3 Metre Shearbolt 1200 kg 7 8 120
3 metre Auto Reset 1445 kg 7 8 120
4.5 Hydraulic Folding 2200 kg 11 12 210
