Grain Trailer

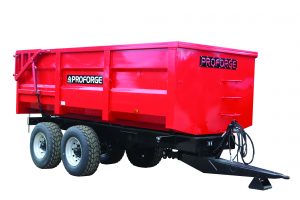

PROFORGE Grain Trailer

OVERVIEW

PROFORGE® ACE Grain Trailer, our standard Grain Trailer, comes in a range of different sizes and adaptations.
FIND A STOCKIST

KEY STRENGTH

This trailer is built in the UK to highest manufacturing standards. It’s wide parallel chassis is constructed from rolled hollow section which is fully sealed for long life. Wide spaced rams also give greater stability, side and rear panels are ribbed and braced for strength and rigidity.

ECONOMY

When it comes to the harvest season, this sturdy and affordable trailer will ensure you stay ‘Strategically Strong’ with PROFORGE®.

TESTIMONIAL

Great and easy to use impliment for any arable farmer to have on hand this harvest season.

ALL FEATURES

  • Standard/Hydraulic Door
  • Rigid/Sprung Drawbar
  • Grain Chute
  • 10 Stud Commercial Axles (420 x 180 S – Cam brakes), 1.8 Metres Axle Track
  • 20 Tonne Tandem Parabolic Suspension
  • Tapered Body Construction
  • Super Single Tyres (or Flotation Tyres option at increased cost)

TECHNICAL INFORMATION

Model Features Body Dimensions (L X H X W) Tare Weight Grain Capacity (m³) Overall Length
12 Tonne Standard Door 5.2 x 1.37 x 2.3 Metre 4442 kg 16.5m³ 6.7m
12 Tonne Hydraulic Door 5.2 x 1.37 x 2.3 Metre 4442 kg 16.5m³ 6.7m
12 Tonne Hydraulic Door & Sprung Drawbar 5.2 x 1.37 x 2.3 Metre 4442 kg 16.5m³ 6.7m
14 Tonne Standard Door & Sprung Drawbar 6.0 x 1.37 x 2.3 Metre 4760 kg 18.6m³ 7.48m
14 Tonne Hydraulic Door & Sprung Drawbar 6.0 x 1.37 x 2.3 Metre 4760 kg 18.6m³ 7.48m
16 Tonne Hydraulic Door & Sprung Drawbar 6.85 x 1.37 x 2.3 Metre 4831 kg 20.95m³ 8.22m

*These measurements are based on 385/65R x 22.5 Super Single Tyres.
